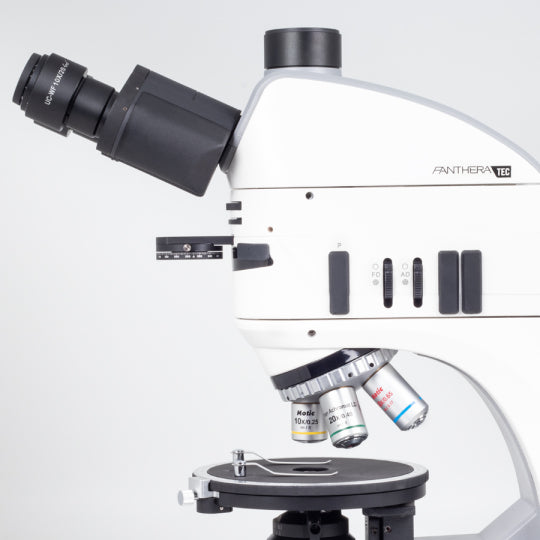

A new level of Transmitted/Incident light microscope for diverse Polarization applications: Panthera TEC POL Epi is a polarization microscope (binocular / trinocular / digital) with a set of UC Plan Achromatic objectives, working with UC eyepieces of 20mm Field of View. An interchangeable 30W Halogen/3W LED light source is part of a Full-Köhler setup in Transmitted light. Incident light is provided by a compact illuminator with 3W LED light source. The Motic LightTracer system with memory function, a built-in Low-Energy mode and an LED feedback indicator helps to optimize your workflow.
Panthera TEC POL EPI- Powerful Solutions for Incident and Transmitted Light Methods
The Panthera TEC POL EPI series fills a last gap in the Panthera family: Polarization microscopes for all material sciences, ready to handle transparent samples like fibers and foils with their inherent birefringence. The Incident light models for opaque materials work out the specific reflectivity (bireflection) of flat surfaces. To extend the application fields, all microscopes carry an intermediate tube with Bertrand lens to analyze the crystal structure and interference figures of gems, precious stones and minerals.
| Model | Panthera TEC POL EPI (Binocular) | Panthera TEC POL EPI (Trinocular) | Panthera TEC POL EPI (Digital) |
| Optical system | Colour Corrected Infinity Optical System (CCIS®) | Colour Corrected Infinity Optical System (CCIS®) | Colour Corrected Infinity Optical System (CCIS®) |
| Observation tube | Binocular head, Siedentopf type | Trinocular head, Siedentopf type | Binocular head, Siedentopf type with built-in digital camera |
| Sensor type | - | - | CMOS |
| Sensor size | - | - | 1/2.5" |
| Capture resolution | - | - | 5MP (2592x1944) |
| Live display mode (through Wi-Fi) | - | - | 1920x1080 (Full HD) |
| Live display mode (through ethernet) | - | - | 1280x720, 1920x1080 (Full HD) |
| Live display mode (through HDMI) | - | - | 1280x720, 1920x1080 (Full HD) |
| Inclination | 25º inclined | 25º inclined | 25º inclined |
| Trinocular light split | - | Fixed 50:50 | - |
| Interpupillary distance | 48-75mm | 48-75mm | 48-75mm |
| Diopter adjustment | On both eyepieces, +/- 4 diopter | On both eyepieces, +/- 4 diopter | On both eyepieces, +/- 4 diopter |
| Eyepieces | Widefield UC-WF10X/22mm with diopter adjustment | Widefield UC-WF10X/22mm with diopter adjustment | Widefield UC-WF10X/22mm with diopter adjustment |
| Nosepiece | Reversed quintuple, coded with single centering holes | Reversed quintuple, coded with single centering holes | Reversed quintuple, coded with single centering holes |
| Intermediate Body | Epi-illuminator LED with rotatable analyzer 360º, Bertrand lens, fixed polarizer and slot for compensators | Epi-illuminator LED with rotatable analyzer 360º, Bertrand lens, fixed polarizer and slot for compensators | Epi-illuminator LED with rotatable analyzer 360º, Bertrand lens, fixed polarizer and slot for compensators |
| Objective classification | Plan Achromatic objectives & CCIS® UC Plan Achromatic (strain-free), DIN | Plan Achromatic objectives & CCIS® UC Plan Achromatic (strain-free), DIN | Plan Achromatic objectives & CCIS® UC Plan Achromatic (strain-free), DIN |
| Objectives | 4X/0.1 (WD 30.5mm), 10X/0.25 (WD 17.4mm), 40X/0.65/S (WD 0.6mm), 60X/0.8/S (WD 0.35mm) | 4X/0.1 (WD 30.5mm), 10X/0.25 (WD 17.4mm), 40X/0.65/S (WD 0.6mm), 60X/0.8/S (WD 0.35mm) | 4X/0.1 (WD 30.5mm), 10X/0.25 (WD 17.4mm), 40X/0.65/S (WD 0.6mm), 60X/0.8/S (WD 0.35mm) |
| Objective mounting thread | W 4/5"x1/36" (RMS standard) | W 4/5"x1/36" (RMS standard) | W 4/5"x1/36" (RMS standard) |
| Stage | Circular rotating 360º, lockable | Circular rotating 360º, lockable | Circular rotating 360º, lockable |
| Stage size | Ø160mm | Ø160mm | Ø160mm |
| Travel range X&Y | 1º increments, 0,1º vernier scale | 1º increments, 0,1º vernier scale | 1º increments, 0,1º vernier scale |
| Condenser | Focusable and centerable Achromat Swing-out Abbe condenser N.A. 0.90/0.13 (strain-free) and rotatable polarizer | Focusable and centerable Achromat Swing-out Abbe condenser N.A. 0.90/0.13 (strain-free) and rotatable polarizer | Focusable and centerable Achromat Swing-out Abbe condenser N.A. 0.90/0.13 (strain-free) and rotatable polarizer |
| Diaphragm | Iris diaphragm | Iris diaphragm | Iris diaphragm |
| Focus mechanism | Coaxial coarse and fine focusing system with tension adjustment | Coaxial coarse and fine focusing system with tension adjustment | Coaxial coarse and fine focusing system with tension adjustment |
| Fine focus precision | 2µm | 2µm | 2µm |
| Focusing stroke | 25mm | 25mm | 25mm |
| Upper limit stop | Upper limit stop preset but adjustable | Upper limit stop preset but adjustable | Upper limit stop preset but adjustable |
| Filter holder | On top of the illuminator with fixing cap | On top of the illuminator with fixing cap | On top of the illuminator with fixing cap |
| Transmitted illumination | Koehler Quartz halogen 6V/30W with intensity control | Koehler Quartz halogen 6V/30W with intensity control | Koehler Quartz halogen 6V/30W with intensity control |
| Illumination interchangeability | Halogen/LED and LED color temperature interchangeability | Halogen/LED and LED color temperature interchangeability | Halogen/LED and LED color temperature interchangeability |
| Illumination features | Motic LightTracer: Light memory, sleep mode (auto on-off), nosepiece LED light intensity and mode indicator | Motic LightTracer: Light memory, sleep mode (auto on-off), nosepiece LED light intensity and mode indicator | Motic LightTracer: Light memory, sleep mode (auto on-off), nosepiece LED light intensity and mode indicator |
| Transformer | Internal | Internal | Internal |
| Power supply | 110-240V (CE) | 110-240V (CE) | 110-240V (CE) |
| Other features | USB 2.0 for external camera power | USB 2.0 for external camera power | USB 2.0 for external camera power |
| Accessories included | Dust cover, power cord, Allen key, blue filter, halogen bulb, adjustable key for nosepiece, interference color chart, screws for metal extension support | Dust cover, power cord, Allen key, blue filter, halogen bulb, adjustable key for nosepiece, interference color chart, screws for metal extension support | Dust cover, power cord, Allen key, blue filter, halogen bulb, adjustable key for nosepiece, interference color chart, screws for metal extension support |
| Dimensions LxWxH | 410x300x395mm | 410x300x395mm | 410x300x395mm |
| Net weight | 10.4kg | 9.8kg | 9.9kg |
