*Advanced AI software is available for this package
Descriptions
The PA53BIO Trinocular is an upright laboratory microscope designed for research work in hospitals and life science laboratories. It features powerful Köhler Quartz Halogen 100W transmitted illumination and a 1µ fine focus precision. The IL Function, together with the quintuple coded nosepiece, memorizes the brightness level for each objective position.
The Hi-Res Partner - Moticam S6 is designed for those application fields which need higher resolution. Presentations to a greater audience through video projector and reports in hardcopy are performed with ease. With 6 million pixels and a fast data readout, the performance is remarkable!
Transform your life sciences research with the Image-Pro® - Life Science Package for Motic, developed in partnership with . This versatile solution combines advanced Machine Learning technology with a comprehensive suite of protocols to provide precise segmentation, classification, and automated measurements from 2D images. Perfect for a wide range of life science applications, this package enhances your analytical capabilities with efficiency and accuracy.
This package also includes a 12-month subscription to a Standard Success Plan from Media Cybernetics, providing ongoing technical assistance and software onboarding so you can focus on the work that truly matters.
Köhler Quartz halogen 12V/100W with intensity control
Illumination features
Power saving mode ECO function, LED voltage indicator and Intelligent Light function
Transformer
Internal
Power supply
110-240V (CE)
Accessories included
Dust cover, power cord, Allen key, immersion oil (5ml)
Dimensions LxWxH
576x247x457mm
Net weight
19.2kg
Camera Specifications
Model
Moticam S6
Sensor type
sCMOS
Sensor size
1/1.8"
Imaging area
8.92mm (Diagonal)
Capture resolution info
6MP
Live display mode through USB (pixels)
3072x2048, 1536x1024
Pixel size
2.4x2.4μm
Scan mode
Progressive
Shutter mode
Rolling Shutter
Data transfer
USB 3.1
Max. frames per second (fps*)
3072x2048 @ 30fps, 1536x1024 @ 50fps
Exposure time
16 μsec to 2 sec
Operating temperature
From -10 to +60 Degrees Celsius non condensing
Sensitivity
425mV(G) @ 1/30 sec
Support device
TWAIN, SDK and DirectShow Driver
Supported OS
Microsoft Windows 7/8/10, MAC OSX, Linux or higher
Minimum computer requirements
2GHz dualcore - RAM memory 2GB - Video memory min. 512 MB
Lens mount
C-Mount
Software
Motic Images Plus 3.0 for Windows, OSX and Linux
Functions
Still image and video capture, live and still image measurement, image adjustments, white balance, automatic and manual exposure, individual objective calibration system
Power supply
5V (from USB Port)
Package includes
CS ring adaptor, USB 3.1 cable, Motic 4-dot calibration slide, Motic Images Plus 3.0 for Windows/OSX/Linux
(*) Frames per second under optimal lighting conditions and in compliance with computer technical requirements.
Image-Pro Software Features
Image-Pro® Software Package by Media Cybernetics
With over 150,000 peer-reviewed publications, Image-Pro stands as the most advanced and innovative imaging platform available to the scientific community. Designed to meet your imaging needs, the combination of Image-Pro software and Motic hardware provides a seamless end-to-end solution for image capture, processing, measurement, and reporting. It uniquely integrates efficient automation with high precision and measurement accuracy. Additionally, its versatility and broad range of applications make it an essential tool for researchers across diverse fields.
Software Key Features
Standard Package
AI-Powered Package
AI Deep Learning-Powered Analysis
For superior 2D image segmentation accuracy over Machine Learning and other methods, this library of Pre-Trained AI models delivers instant segmentation results for a wide range of applications.
✓
AI Deep Learning Model Training
Fine tune the existing Pre-Trained models or build your own for custom segmentation of the most challenging images.
✓
Machine Learning-Powered Analysis
Leverage sophisticated pixel classification algorithms for accurate segmentation and classification, ensuring automated and reliable measurements from 2D images.
✓
✓

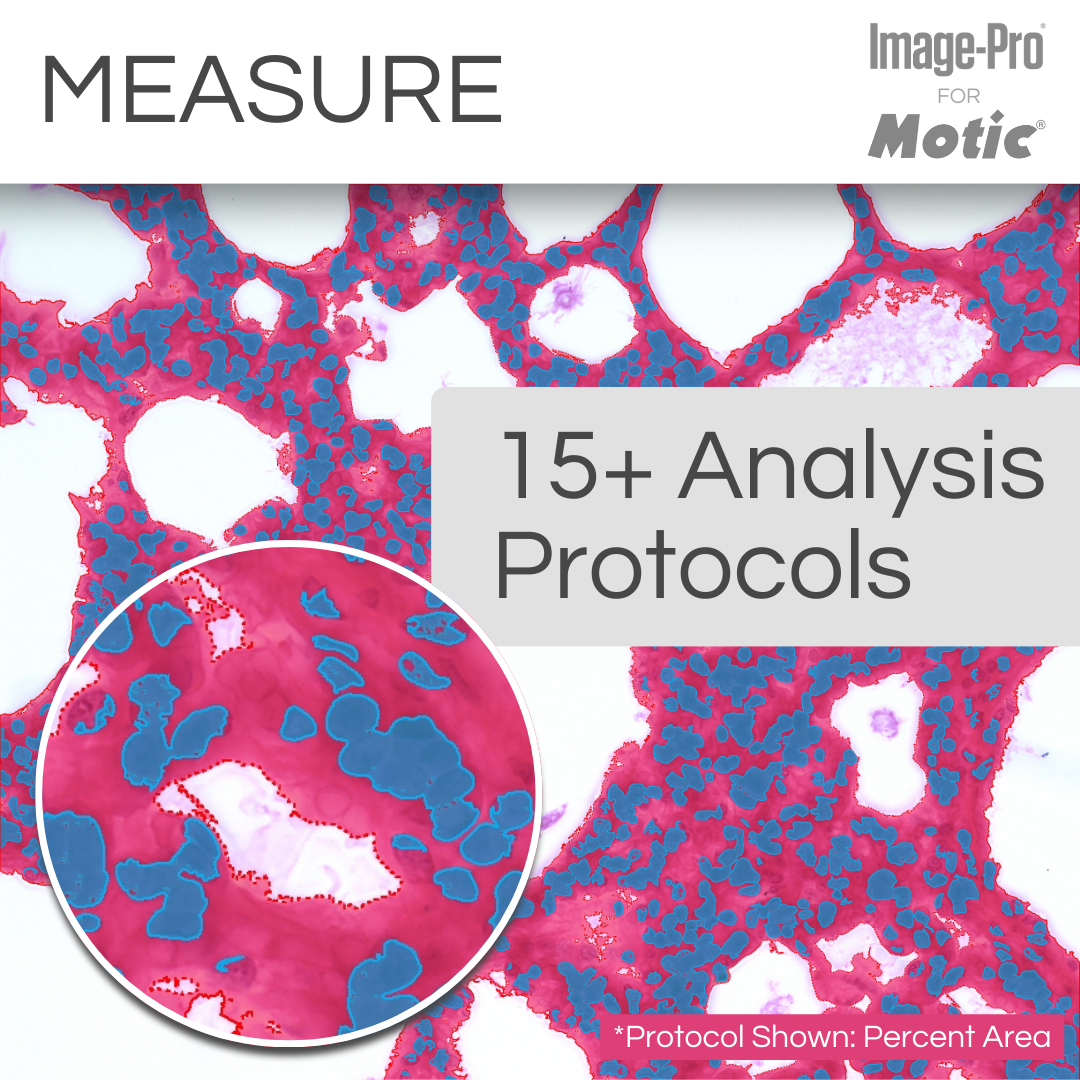

Analysis Protocols for guided analysis
Streamline your research with a comprehensive suite of protocols designed for efficient, repeatable analysis across various life science applications—all within a simple, step-by-step workflow.
Choose from 144+ measurements to display in tables and graphs, generate custom reports, and export data to Excel, CSV, or PDF. Easily share individual measurements and statistics with collaborators.
✓
✓
Image Processing
Correct background illumination, tile and stitch large areas, colorize your images, enhance with filters, align and register images, and more. Choose from a helpful suite of options to prepare your images for analysis or publication.
✓
✓
Image Preview and Capture
Designed to control the Moticam camera, you can now automatically preview a live image and effortlessly capture LIVE Tiling, LIVE EDF, LIVE HDR, Timelapse movies, and beautiful still images.
✓
✓
Check compatibility with Image-Pro
Different packages have varying system requirements. Check your computer’s specifications against the system requirements for Image-Pro software.
