| Model | Panthera TEC MAT BF | Panthera TEC MAT BF-T | Panthera TEC MAT BD | Panthera TEC MAT BD-T |
| Optical system | Colour Corrected Infinity Optical System (CCIS®) | Colour Corrected Infinity Optical System (CCIS®) | Colour Corrected Infinity Optical System (CCIS®) | Colour Corrected Infinity Optical System (CCIS®) |
| Observation tube | Trinocular head, Siedentopf type, 360º swiveling | Trinocular head, Siedentopf type, 360º swiveling | Trinocular head, Siedentopf type, 360º swiveling | Trinocular head, Siedentopf type, 360º swiveling |
| Inclination | 25º inclined, 360º swivelling | 25º inclined, 360º swivelling | 25º inclined, 360º swivelling | 25º inclined, 360º swivelling |
| Trinocular light split | Fixed 50:50 | Fixed 50:50 | Fixed 50:50 | Fixed 50:50 |
| Interpupillary distance | 48-75mm | 48-75mm | 48-75mm | 48-75mm |
| Diopter adjustment | On both eyepieces, +/- 4 diopter | On both eyepieces, +/- 4 diopter | On both eyepieces, +/- 4 diopter | On both eyepieces, +/- 4 diopter |
| Eyepieces | Widefield UC-WF10X/22mm with diopter adjustment | Widefield UC-WF10X/22mm with diopter adjustment | Widefield UC-WF10X/22mm with diopter adjustment | Widefield UC-WF10X/22mm with diopter adjustment |
| Intermediate body | Epi-illuminator LED with integrated field and aperture diaphragms and slots for analyzer and polarizer | Epi-illuminator LED with integrated field and aperture diaphragms and slots for analyzer and polarizer | Epi-illuminator LED with integrated field and aperture diaphragms and slots for analyzer and polarizer | Epi-illuminator LED with integrated field and aperture diaphragms and slots for analyzer and polarizer |

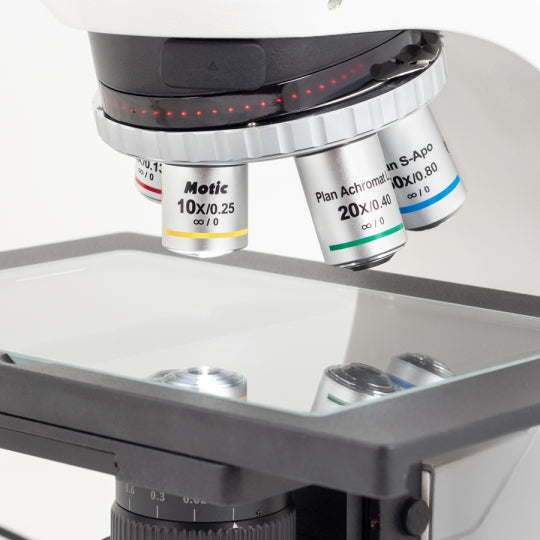

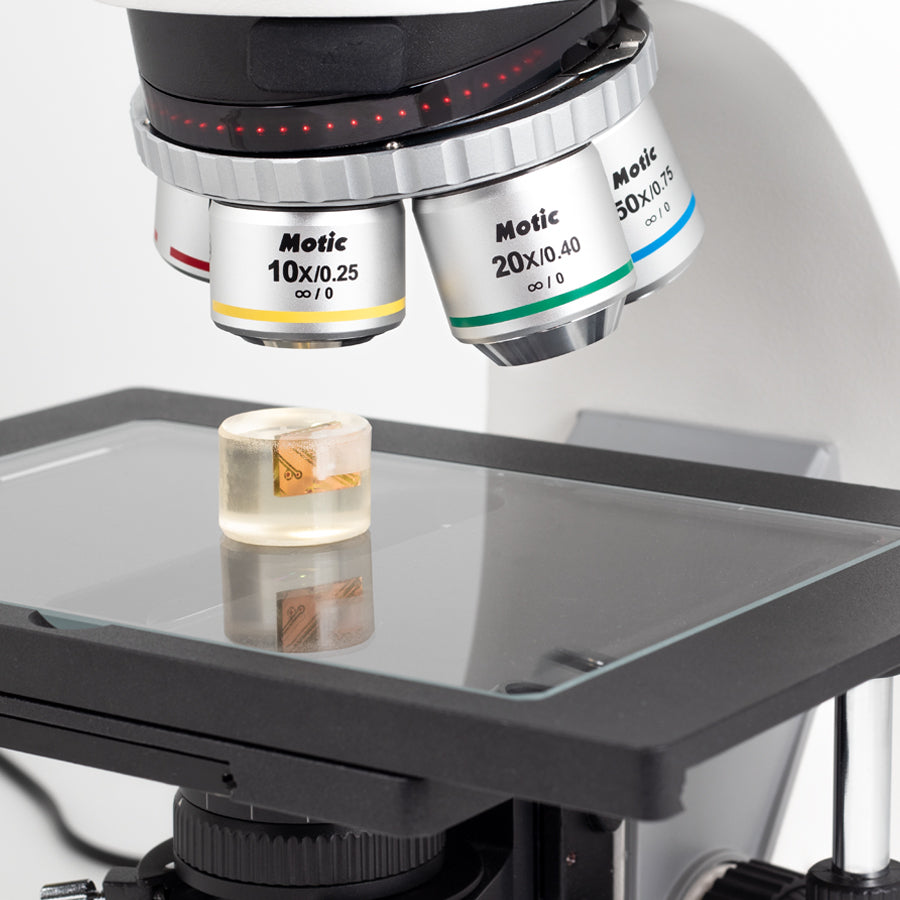

| Nosepiece | Reversed quintuple, coded | Reversed quintuple, coded | Reversed quintuple, coded | Reversed quintuple, coded |
| Objective classification | CCIS® LD Plan Achromatic & S-Apo (Pb free), DIN | CCIS® LD Plan Achromatic & S-Apo (Pb free), DIN | CCIS® BD Plan Achromatic & S-Apo (Pb free), DIN (for Brightfield and Darkfield) | CCIS® BD Plan Achromatic & S-Apo (Pb free), DIN (for Brightfield and Darkfield) |
| Objectives | 5X/0.13 (WD 20.3mm),
10X/0.25 (WD 17.5mm),
20X/0.40 (WD 8.1mm),
S-Apo 50X/0.80 (WD 1mm) | 5X/0.13 (WD 20.3mm),
10X/0.25 (WD 17.5mm),
20X/0.40 (WD 8.1mm),
S-Apo 50X/0.80 (WD 1mm) | 5X/0.13 (WD 17.3mm),
10X/0.25 (WD 16.3mm),
20X/0.40 (WD 7.3mm),
S-Apo 50X/0.80 (WD 1mm) | 5X/0.13 (WD 17.3mm),
10X/0.25 (WD 16.3mm),
20X/0.40 (WD 7.3mm),
S-Apo 50X/0.80 (WD 1mm),
S-Apo 100X/0.90 (WD 0.5mm) (Optional) |
| Objective mounting thread | W 4/5"x1/36" (RMS standard) | W 4/5"x1/36" (RMS standard) | M32 | M32 |
| Stand type | Upright | Upright | Upright | Upright |
| Stage | Mechanical stage, hard coated with built-in low position coaxial stage control and glass plate | Mechanical stage, hard coated with built-in low position coaxial stage control and glass plate | Mechanical stage, hard coated with built-in low position coaxial stage control and glass plate | Mechanical stage, hard coated with built-in low position coaxial stage control and glass plate |
| Stage size | 300x180mm | 300x180mm | 300x180mm | 300x180mm |
| Travel range X&Y | 150x100mm (6"x4") | 150x100mm (6"x4") | 150x100mm (6"x4") | 150x100mm (6"x4") |

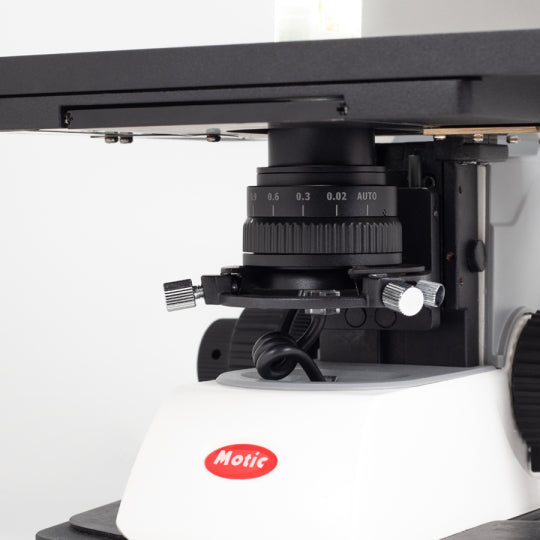

| Condenser | - | LED condenser | - | LED condenser |
| Focus mechanism | Coaxial coarse and fine focusing system with tension adjustment | Coaxial coarse and fine focusing system with tension adjustment | Coaxial coarse and fine focusing system with tension adjustment | Coaxial coarse and fine focusing system with tension adjustment |
| Fine focus precision | 2µm | 2µm | 2µm | 2µm |
| Focusing stroke | 25mm | 25mm | 25mm | 25mm |
| Upper limit stop | Upper limit stop preset but adjustable | Upper limit stop preset but adjustable | Upper limit stop preset but adjustable | Upper limit stop preset but adjustable |
| Incident illumination | LED 3W with integrated field and aperture diaphragms | LED 3W with integrated field and aperture diaphragms | LED 3W smart segmental ringlight with integrated field and aperture diaphragms | LED 3W smart segmental ringlight with integrated field and aperture diaphragms |
| Transmitted illumination | - | 0.06Wx39 LEDs | - | 0.06Wx39 LEDs |
| Illumination interchangeability | LED color temperature interchangeability | LED color temperature interchangeability | LED color temperature interchangeability | LED color temperature interchangeability |
| Illumination features | Motic LightTracer: Light memory, sleep mode (auto on-off), nosepiece LED light intensity and mode indicator | Motic LightTracer: Light memory, sleep mode (auto on-off), nosepiece LED light intensity and mode indicator | Motic LightTracer: Light memory, sleep mode (auto on-off), nosepiece LED light intensity and mode indicator | Motic LightTracer: Light memory, sleep mode (auto on-off), nosepiece LED light intensity and mode indicator |
| Transformer | Internal | Internal | Internal | Internal |
| Power supply | 110-240V (CE) | 110-240V (CE) | 110-240V (CE) | 110-240V (CE) |
| Other features | USB 2.0 for external camera power | USB 2.0 for external camera power | USB 2.0 for external camera power | USB 2.0 for external camera power |
| Accessories included | Dust cover, power cord, Allen key, screws for metal extension support | Dust cover, power cord, Allen key, screws for metal extension support | Dust cover, power cord, Allen key, screws for metal extension support | Dust cover, power cord, Allen key, screws for metal extension support |
| Dimensions LxWxH | 410x300x450mm | 410x300x450mm | 410x300x450mm | 410x300x450mm |
| Weight Net | 10.4kg | 10.6kg | 10.5kg | 10.7kg |
| Standard contrast technique | Brightfield | Brightfield | Brightfield, Darkfield | Brightfield, Darkfield |
| Optional contrast technique | Polarization | Polarization | Polarization | Polarization |
