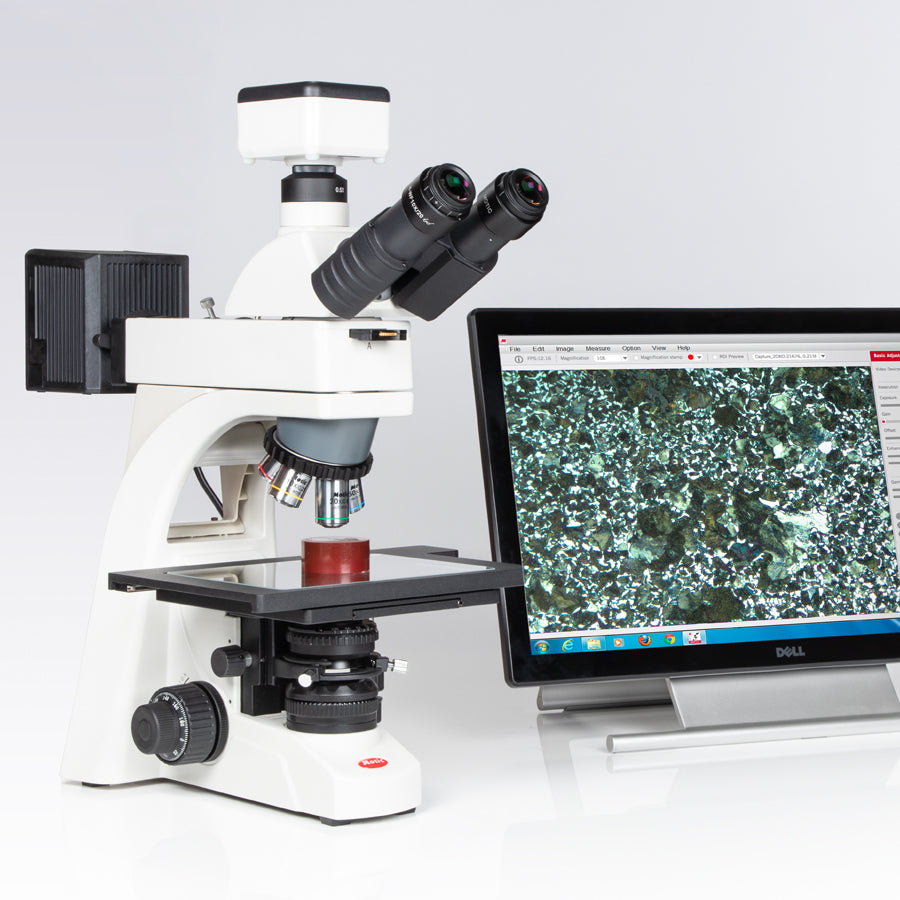

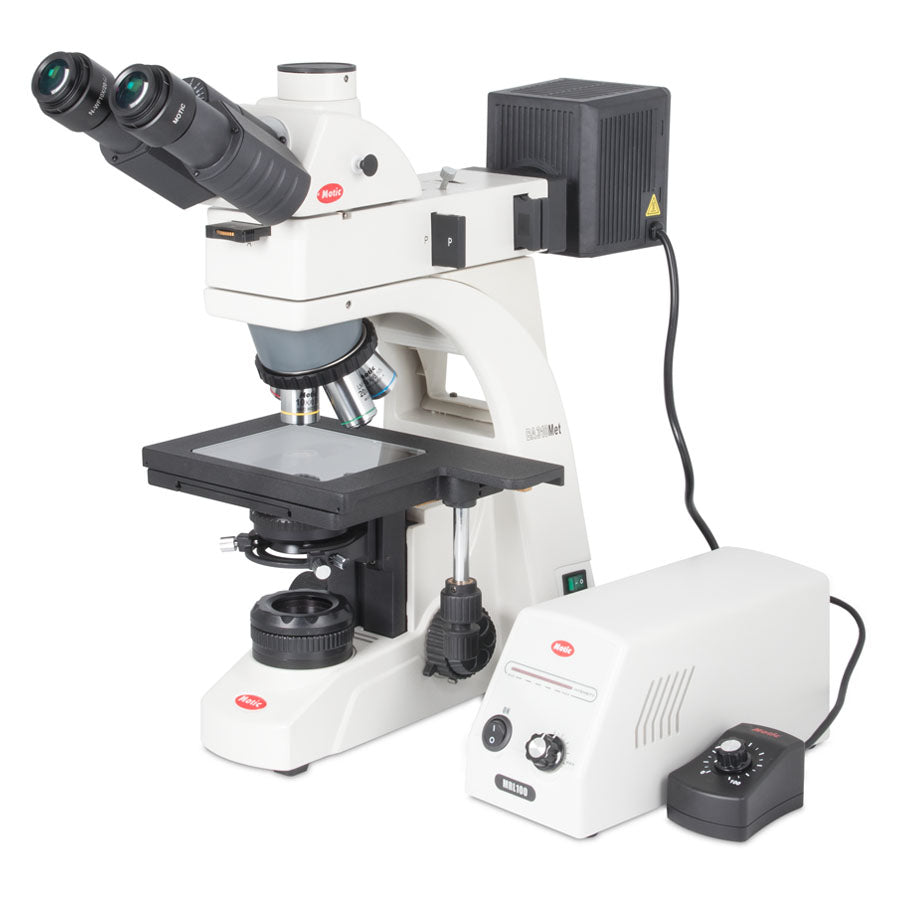

Upright trinocular microscope for advanced work in material sciences. Flat metal surfaces and compound materials from industry can be examined by the new CCIS® LM Plan Achromat objectives. Lab technicians, but also teachers are enabled to work on reflective, non-covered specimens, but also transparent samples from industrial quality control and technical schools.

Descriptions

- Advanced Microscopes for Material Sciences

Great flexibility for all sample sizes

and are based on a regular upright microscope with fixed nosepiece and movable stage, while in the Epi-Illumination including optics is combined with a focusing block mounted on a vertical pole. Thus an extended focusing range for the examination of bulky samples is achieved.

New LM Plan Achromats for incident light

A new generation of LM Plan-Achromatic objectives dedicated to non-covered specimen. Made of high quality glass, these LWD objectives follow the successful Motic CCIS® optical concept and ensure improved contrast and image quality by multi-layer coating.

Flexibility for compound materials

The Epi-Illuminator of the BA310MET models is based on a 50W Halogen light source with external power supply. With an adjustable field and aperture diaphragm, homogenous illumination and improved contrast are guaranteed. The simple polarization set enables a useful "POL contrast" and helps to minimize reflections especially in low power objectives.

Specifications

Downloads

Specifications - BA310MET-T Trinocular (Stroke 6"x4" Stage)

Instructions
