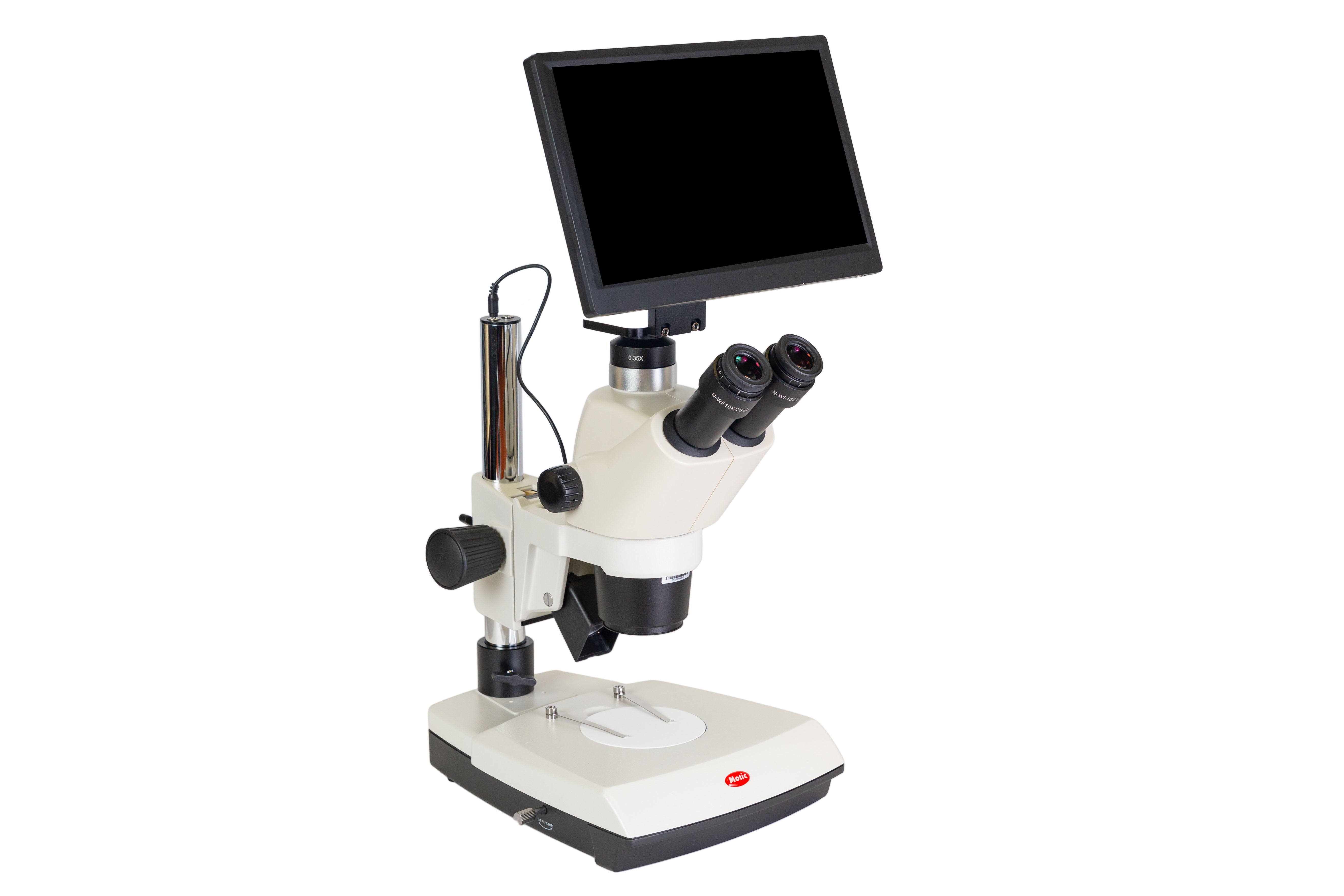

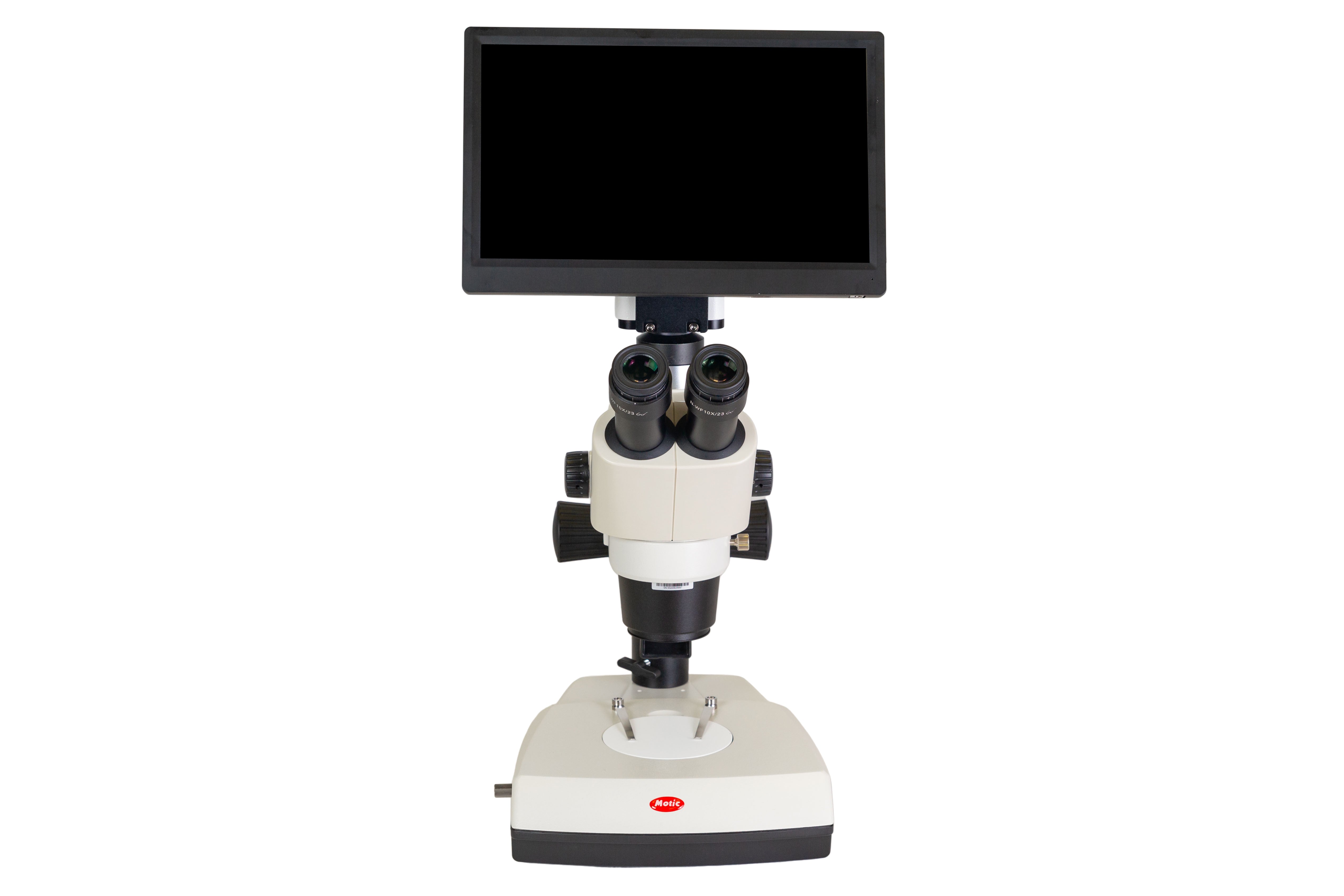

SMZ 171 Trinocular Stereo Microscope with Moticam BMH4000X Camera Bundle - Perfect for Lab Research, Industrial Inspection & Educational Use

SMZ 171 Trinocular Stereo Microscope with Moticam BMH4000X Camera Bundle - Perfect for Lab Research, Industrial Inspection & Educational Use

$2192.85 $3987 -45%

Free shipping on all orders over $50

7-15 days international

8 people viewing this product right now!

30-day free returns

Secure checkout

23252743

Guranteed safe checkout

This digital camera bundle comes with:

SMZ-171-TLED Trinocular
Moticam BMH4000X
Compatible C-mount adapter

With the new SMZ-171 Stereo Zoom microscope Motic proudly introduces an optically improved addition to its well-established SMZ Stereo series. New materials for ESD compatibility as well as optimized LED illumination options have been added to this series to create a versatile Stereo microscope platform for a wide range of biological and material science applications.

SMZ-171-TLED Specifications

Model	SMZ-171-TLED
Observation tube	Trinocular head
Optical system	Greenough
Base	303x239mm
Column/Arm	Height 232mm, Ø32mm
Darkfield	Optional add-on
Diopter adjustment	On both eyepieces, +/- 5 diopter
Eyepieces	Widefield N-WF10X/23mm with diopter adjustment
Focus mechanism	Coarse focusing system with tension adjustment
Focusing stroke	49mm
Head holder	For Ø32mm column and Ø76mm head
Illumination features	Transmitted light with tilting reflector for oblique illumination
Incident illumination	LED 3W with intensity control
Inclination	45° inclined
Interpupillary distance	52-75mm
Objectives	0.75X~5X
Objectives system	Zoom, ratio 6.7:1
Polarization	Optional add-on
Stand type	Pole type stand with transmitted illumination and cold light input
Standard contrast technique	Brightfield
Transmitted illumination	LED 3W with reflector and intensity control
Working distance	110mm
Transformer	External
Power supply	100-240V (CE)
Accessories included	Dust cover, black/white and frosted stage plates
Dimensions LxWxH	303x239x405mm
Weight Net	6.2kg

Moticam BMH4000X Specifications

Model	Moticam BMH4000X
Sensor size	1/2.8"
Image output	HDMI, UXC, WIFI 5
Capture resolution	8MP
Pixel Size	1.45 x 1.45m
Scan mode	Progressive
Shutter mode	Rolling Shutter
Lens mount	C-Mount
*Max. frames per second (fps)**	HDMI: (4K) 30fps @ 3840x2160 WIFI: 25fps @ 1920x10180, 12fps @ 3840x2160 USB: (4K) 30fps @ 3840x2160
Image capture	JPEG/TIFF format with 4K (3840x2160) resolution in SD card
Video record	4K (30fps @ 3840x2160) H264/H265 encoded MP4 file in SD card
Screen	LCD 11.6" native 1920x1080 pixels full HD screen
Software	Motic Images Plus 3.1 for Windows/Mac OS
On-Board Software (Camera connected through HDMI to a HD screen and through USB to a mouse)
Standard tools	Still image capture, Live image record, Zoom in & out, Magnifier, ROI, Mirror, Rotation, Split, Freeze, Cross line, Gallery
Image adjustments (AE/AWB)	Auto/manual exposure mode, Gain, Target brightness setting, Light frequency, Auto/manual white balance mode
Advanced settings	Saturation, Contrast, Gamma, Sharpness, Denoise, User settings, System's time setting, Language (English, Chinese and Japanese), Format SD card
*Frames per second under optimal illumination conditions.

Downloads

SMZ-171-TLED (Trinocular)

Moticam BMH4000X

Videos

How to replace the incident illumination of the SMZ171 and SMZ168 LED models

Discover how to replace the LED assembly of the incident illumination of your Motic SMZ171-BLED/TLED or SMZ168-BLED/T-LED stereo microscopes. Learn how to do it in a few easy steps.

How to replace the transmitted illumination of the SMZ171 and SMZ168 LED models

Discover how to replace the LED assembly of the transmitted illumination of your Motic SMZ171-BLED/TLED or SMZ168-BLED/T-LED stereo microscopes. Learn how to do it in a few easy steps.

How to adjust the tension of the focusing system (hook key). E.g. SMZ168

Learn how easy it is to adjust the tension of the focusing system of your Motic microscope. For models with Allen and hook key.

How to avoid repairs in your microscope

Do you want to know how to keep your microscope in its best condition? In this video, we will give you some basic tricks to carry out; before, during, and after its use and thus avoid possible repairs.
