15120069
A Good Balance

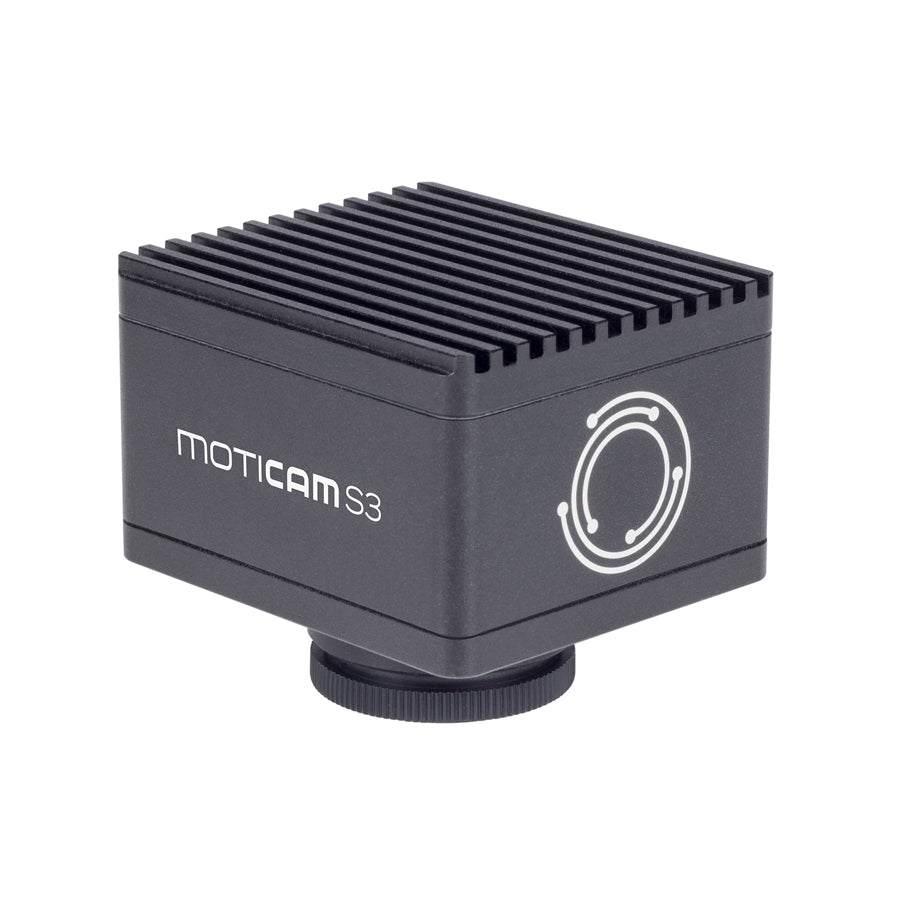

Moticam S3 delivers a mid-size resolution of 3MP, keeping the balance between speed and resolution. A universal tool for teaching and routine lab, for biology, medicine and industry. The sCMOS sensor guarantees state of the art imaging results for an unbeatable price.
The right choice for challenging tasks in professional fields. The Moticam S Series offers smooth navigation, high colour fidelity, and crisp images designed by German engineers. Time efficiency in its best resolution from HD up to QHD+.
• The Speedy Standards
and are designed for the fast and accurate imaging of results in biomedical environments or industry. Ultra-fast image capture and smooth navigation through your samples in live mode. Excellent balance of speed and image quality.
• The Hi-Res Experts
, and are focused on resolution, ready to reveal the tiniest detail of your sample on a large screen. Documentation in printed format is no problem at all. The data volume created by the 6/12/20MP sensors should be handled by a computer with USB 3.1 Gen.1 port for faster transmission.
• The Hi-Sensitives
and are characterized by a large 2/3' sCMOS sensor and a Global Shutter for speedy handling of moving phenomena. This camera line takes Sensitivity as a priority: Fluorescence, Polarization, and Darkfield are the applications the engineers had in mind.
| Model | S1 | S3 | S6 | S12 | S20 | Pro S5 Lite | Pro S5 Plus |
| Sensor Type | sCMOS | ||||||
| Sensor Size | 1/3" | 1/2.8" | 1/1.8" | 1/1.7" | 1" | 2/3" | 2/3" |
| Imaging Area | 6.09mm (Diagonal) | 6.44mm (Diagonal) | 8.92mm (Diagonal) | 9.33mm (Diagonal) | 15.86mm (Diagonal) | 11.1mm (Diagonal) | 11.1mm (Diagonal) |
| Capture Resolution Info | 1.2MP | 3MP | 6MP | 12Mp | 20MP | 5MP | 5MP |
| Live display mode through USB (pixels) | 1280x960, 640x480 | 2048x1536, 1920x1080 | 3072x2048, 1536x1024 | 4000x3000, 2048x1080 | 5472x3648, 2736x1824 | 2448x2048, 1224x1024 | 2448x2048, 1224x1024 |
| Pixel size | 3.75x3.75μm | 2.5x2.5μm | 2.4x2.4μm | 1.85x1.85μm | 2.4x2.4μm | 3.45x3.45μm | 3.45x3.45μm |
| Scan mode | Progressive | ||||||
| Shutter mode | Rolling Shutter | Rolling Shutter | Rolling Shutter | Rolling Shutter | Rolling Shutter | Global Shutter | Global Shutter |
| Data transfer | USB 3.1 | ||||||
| Max. frames per second (fps*) | 1280x960 @ 120fps, 640x480 @ 240fps | 2048x1536 @ 60fps, 1920x1080 @ 60fps | 3072x2048 @ 30fps, 1536x1024 @ 50fps | 4000x3000 @ 25fps, 2048x1080 @ 50fps | 5472x3648 @ 18fps, 2736x1824 @ 50fps | 2448x2048 @ 37.5fps, 1224x1024 @ 88.4fps | 2448x2048 @ 68.3fps, 1224x1024 @ 175.8fps |
| Exposure time | 15 μsec to 2 sec | 21 μsec to 2 sec | 16 μsec to 2 sec | 22 μsec to 2 sec | 15 μsec to 2 sec | 14 μsec to 2 sec | 7 μsec to 2 sec |
| Operating temperature | From -10 to +60 Degrees Celsius non condensing | ||||||
| Sensitivity | 2350mV(G) @ 1/30 sec | 600mV(G) @ 1/30 sec | 425mV(G) @ 1/30 sec | 280mV(G) @ 1/30 sec | 461mV(G) @ 1/30 sec | 1146mV(G) @ 1/30 sec | 1146mV(G) @ 1/30 sec |
| Support device | TWAIN, SDK and DirectShow Driver | ||||||
| Supported OS | Microsoft Windows 7/8/10, MAC OSX, Linux or higher | ||||||
| Minimum computer requirements | 2GHz dualcore - RAM memory 2GB - Video memory min. 512 MB | ||||||
| Lens mount | C-Mount | ||||||
| Software | Motic Images Plus 3.0 for Windows, OSX and Linux | ||||||
| Functions | Still image and video capture, live and still image measurement, image adjustments, white balance, automatic & manual exposure, individual objective calibration system | ||||||
| Power supply | 5V (from USB Port) | ||||||
| Package includes | CS ring adaptor, USB 3.1 cable, Motic 4-dot calibration slide, Motic Images Plus 3.0 for Windows/OSX/Linux | ||||||
| (*) Frames per second under optimal lighting conditions and in compliance with computer technical requirements. | |||||||
Moticam S Series Launch
Have an overview of the complete Moticam S Series and start your digital voyage with our new camera generation. The accelerated data readout enables to work on fast phenomena in biology, industry, polarization or fluorescence. Sensitivity, speed and sensor size no limits.
How to connect your Moticam onto the eyepiece
Learn how to connect your Moticam onto the eyepiece easily.
How to connect your Moticam onto the trinocular tube
Learn how to connect your Moticam onto the trinocular tube easily.
New Motic Images Plus 3.0 Launch
A small taste of the Motic Images Plus 3.0 software.
Motic Images Plus 3.0 & 3.1 - First Steps tutorial
Learn how to make your first steps with Motic Images Plus 3.0 software. From software installation up to making professional measurements, we guide you step by step through getting a great live image, applying image adjustments to see the microscope's image as wished or the most closely to eyepiece observation, and capturing an image or video. All you might need to start with confidence.
Motic Images Plus 3.0 & 3.1 - Calibration tutorial
Calibration simply explained: Learn how to calibrate Motic Image Plus 3.0 software, a must in professional environments where exact scale and measurements are a daily need. Easy to follow step-by-step explanation with tips & tricks to perform it accurately.
